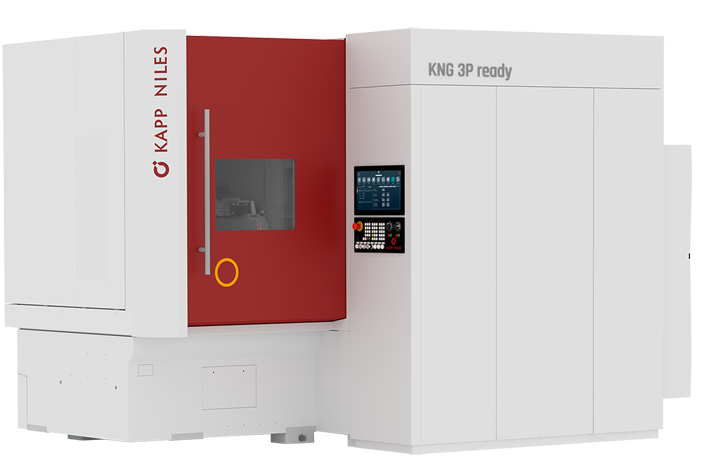

KNG 3P ready
Gear profile grinding machine

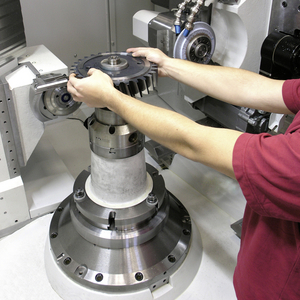

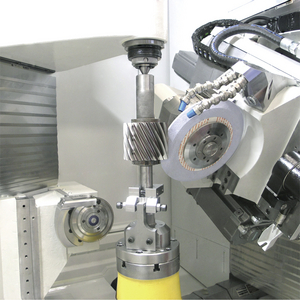

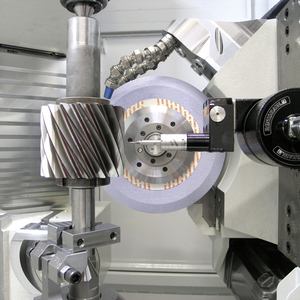

The profile grinding machine KNG 3P ready offers an inexpensive entry into precision machining. It has been designed as a solution for flexible production of small and medium lot sizes. The machine is characterised by a grinding spindle with high drive power for components up to module 10 mm. The directly driven rotary table is generously dimensioned for a table load of up to 350 kg. The dresser sits stationary against the tool axis and even allows the use of small dressing wheels with a minimum diameter of 65 mm. The working area can be used without any restrictions at large helix angles. Thanks to the low height of the machine bed and the short distance to the machine elements all operations can be carried out without requiring means.

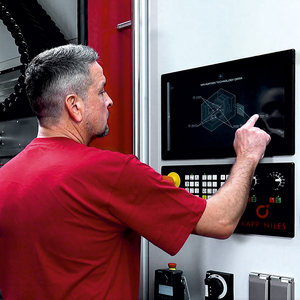

The innovative, operator-friendly user interface KN grind allows a machine-oriented and an intuitive input of all relevant project data.
| max. tip diameter [mm] | max. workpiece length [mm] | module range [mm] | max. face width [mm] | max. helix angle [deg] | |
|---|---|---|---|---|---|
| KNG 3P ready | 320 | 825 | 0.5 - 10 | 400 | -45 / +135 |
